BSP 火災カップリング

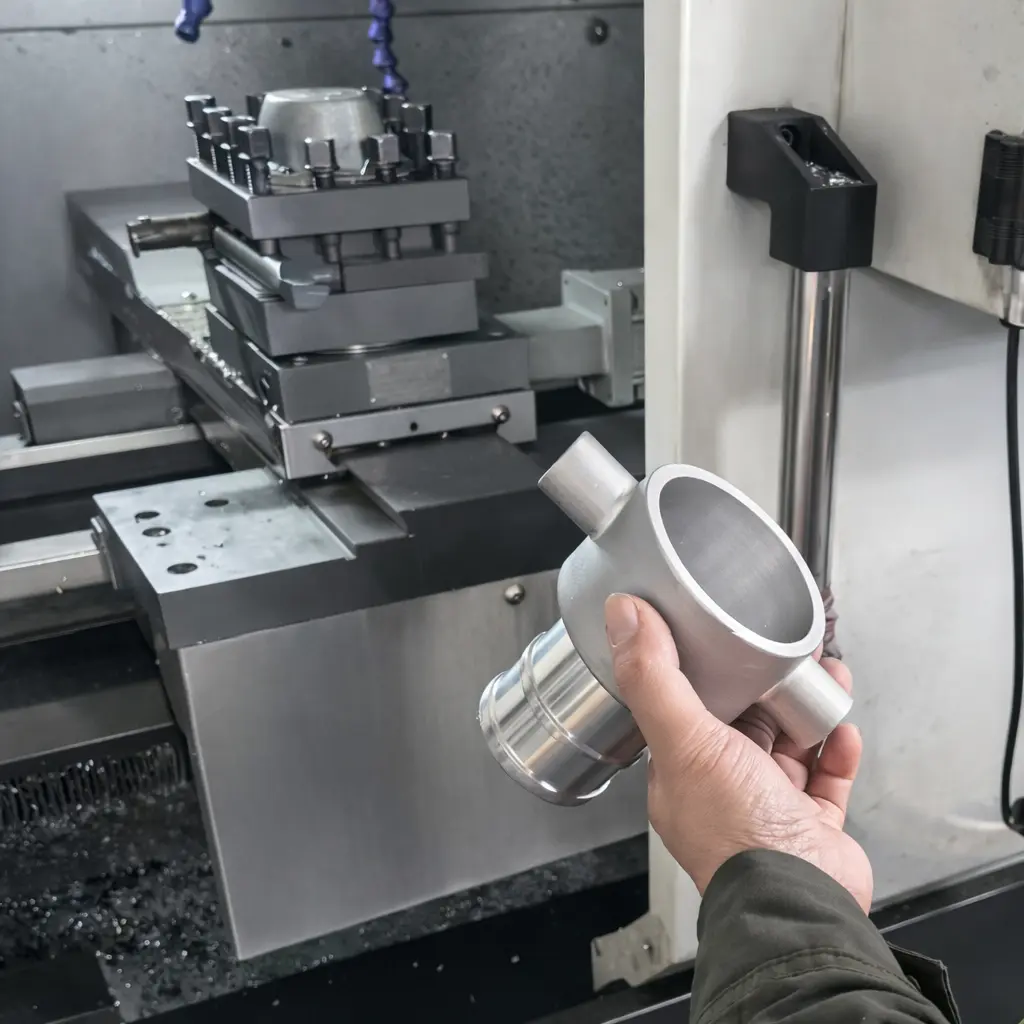

FUXEON® は、長年にわたる豊富な生産経験を持つ BSP 防火カップリングの専門メーカーです。中国に拠点を置く当社工場では、鋳造、機械加工から最終製品の組み立てまでの一貫した生産ラインを誇り、高いコストパフォーマンスを実現します。信頼できるサプライヤーとして、当社は主に英国消防局やさまざまな火災関連施設の要件を満たす標準の 1.5 インチ、2 インチ、および 2.5 インチ BSP 防火カップリングを提供しており、また、お客様のニーズに応じてカスタマイズされた生産サービスも提供しています。

お問い合わせを送信

製品説明

FUXEON® BSP fire couplings are standard low-pressure fire hose connections designed specifically for the UK Fire Service and all fire-related facilities. As a professional manufacturer, we adhere to strict production standards to ensure that each coupling meets the operational requirements of fire safety. These couplings have a wide range of applications, including shipboard firefighting scenarios, and can also be used to connect hoses to fire hydrants, fire truck pumps, and other hose equipment.

Proper selection of BSP fire couplings is crucial to ensuring the safe and effective operation of fire hoses. Key factors such as size, male/female thread, and thread standard need to be considered. With high-quality materials and excellent performance, FUXEON® BSP fire couplings are your trusted choice for safe and effective firefighting operations. Our factory in China supports the production of hose couplings with various thread standards; please contact us for detailed product information.

BSP Fire Coupling

Parameters:

Fire Hose Coupling Type	Inlet size	Hose tail
British/John Morris Coupling	1.5" 40A	38mm
	2" 50A	52mm
	2.5" 65A	65mm
	2.5" 65A	38mm
	2.5" 65A	52mm

Product Features

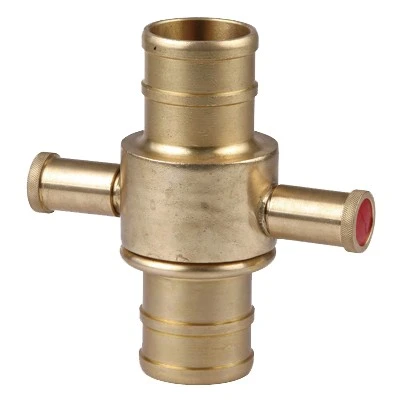

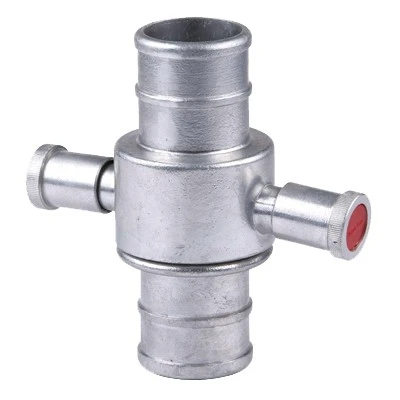

- Material Selection: FUXEON® BS Instantaneous hose couplings are available in two high-quality materials: aluminum and brass, which can meet different application environment requirements and ensure product durability.

- Humanized Design: A key feature of Aluminum John Morris Couplings is the "double pull" female coupling. This design allows operators to use both hands, holding one coupling in each hand, greatly improving the efficiency and convenience of connection operations.

- Applicable Matching: If the British type coupling female coupling is installed on a pipe, manifold, or water tank, a "single twist" coupling should be used. This matching design ensures the stability and tightness of the connection, avoiding water leakage during firefighting operations.

Customization Services & Contact Information

FUXEON® not only produces standard 1.5”, 2”, and 2.5” BSP fire hose couplings but also provides customized production services according to customer requirements. As a trustworthy supplier based in China, we have professional technical teams and advanced production equipment in our factory to ensure that customized products meet customer needs and quality standards. Whether you have special requirements for size, thread standard, or material, we can provide personalized solutions for you.

FAQ

Q1: Which fire protection systems are BSP fire couplings suitable for?

A: BSP fire couplings are suitable for BSP-standard systems, including building fire hydrant systems, fire hose connections, mobile fire equipment (fire trucks, portable pumps), industrial fire pipelines, and HVAC auxiliary fire systems. They fit projects following European/Asian/Australian standards, not directly compatible with US NPT systems.

Q2: Can BSP fire couplings be used for both indoor and outdoor fire scenarios?

A: Yes. Brass/stainless steel BSP couplings are corrosion and weather resistant. For outdoor use (outdoor hydrants, open pipelines), choose brass/stainless steel; for indoor use (corridors, equipment rooms), common brass couplings are lightweight and easy to install.
